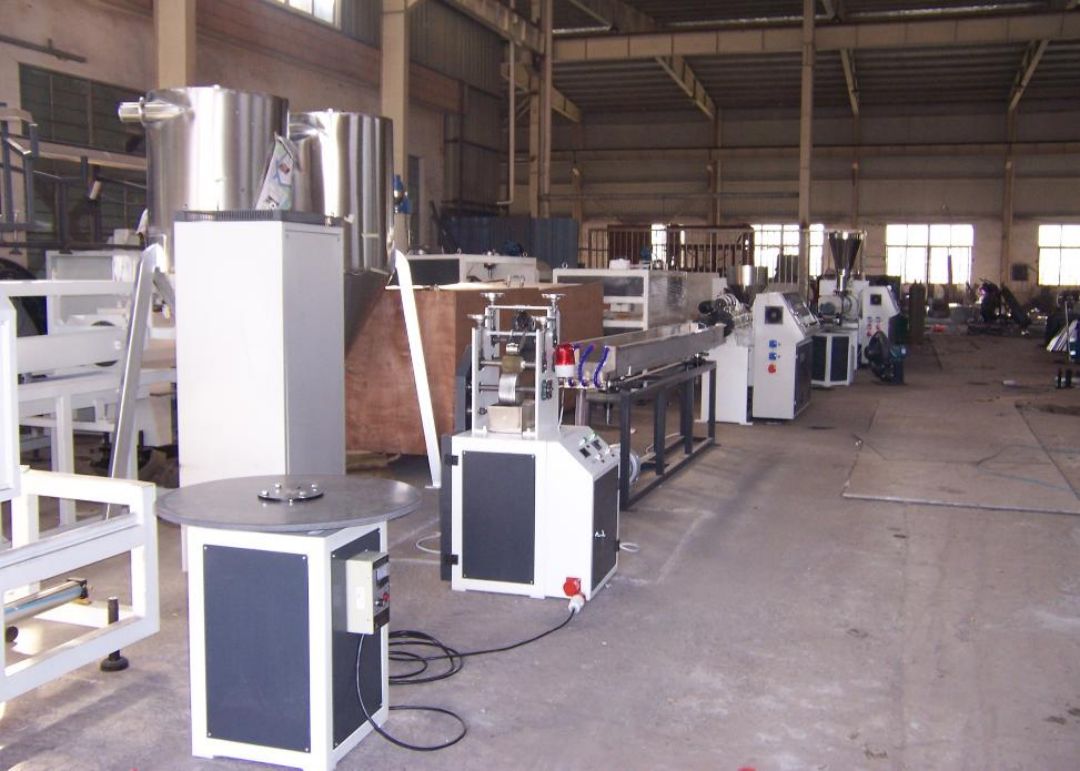

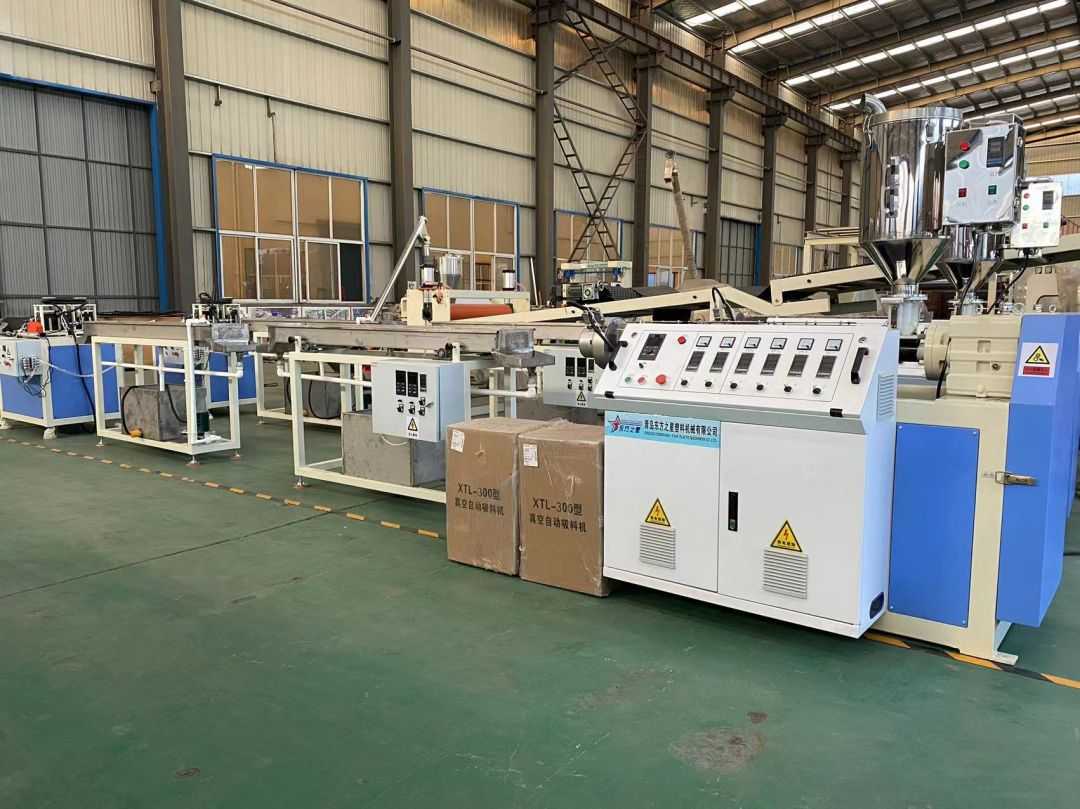

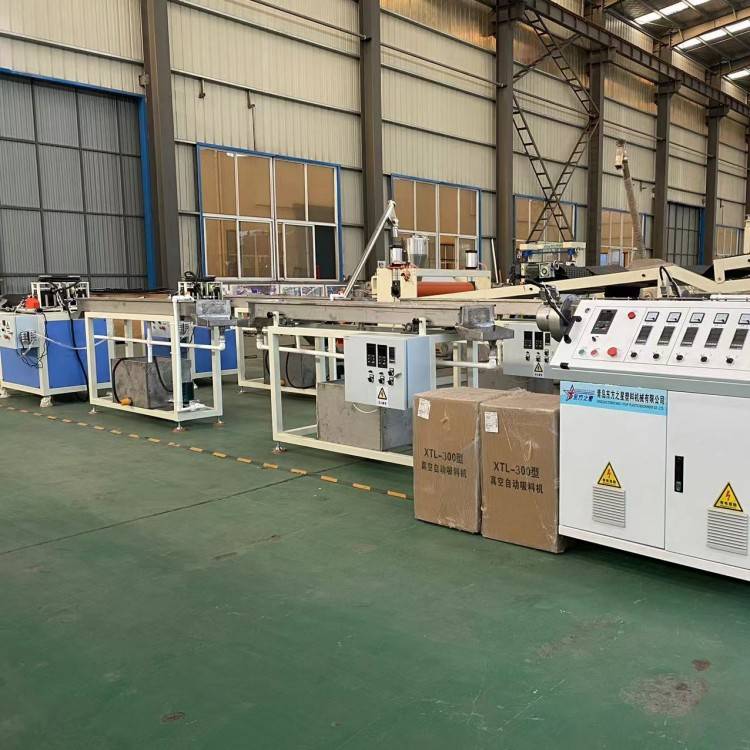

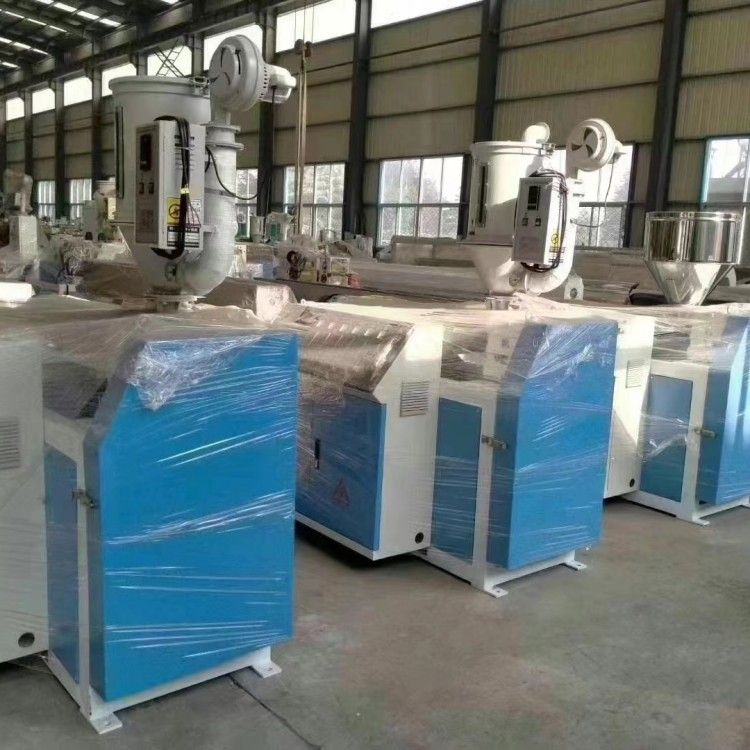

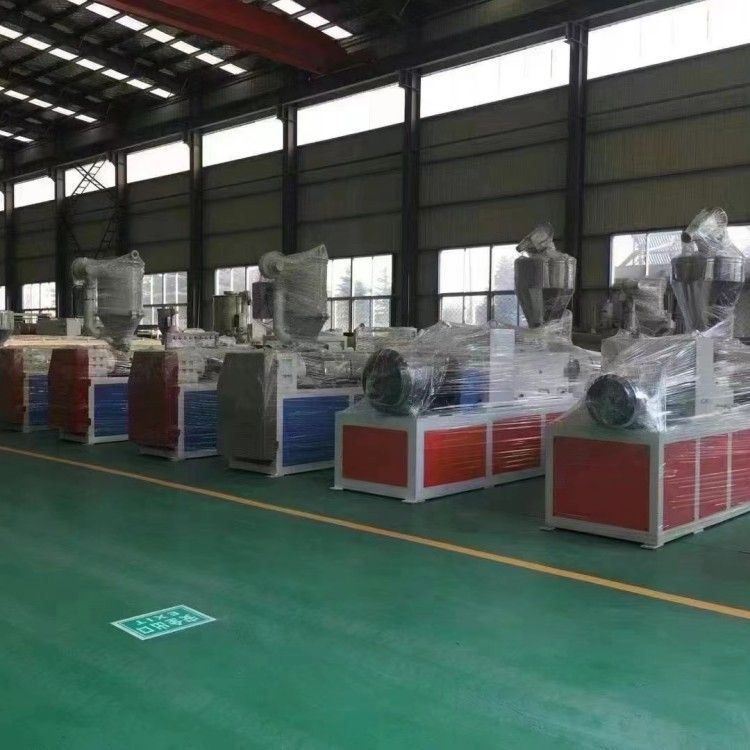

PVC Edge Banding Equipment

Product Description

raw material	PVC particles.
Process	Feeding, extrusion, shaping, traction, embossing, winding, product testing and application
Yield	30-80kg /h Reasonable fluctuation according to material characteristics and product specifications
Machine color	Light grey & dark white pickguard in orange or sky blue
Factory demand	Construction of foundations, construction, earthworks and wall works; Supply cranes, forklifts and other lifting equipment; installation materials and tools; Space: (MMM): 18M (length) × 1.5M (width) × 2.5M (height);
Supply voltage	Power supply voltage: 3-phase 380V 50Hz Voltage tolerance: 5%/-5%; Frequency: 50HZ±2% Total power: 40KW (production line), actual utilization 60 %
Wires/pipes/cables/compressed air	Wires/Cables: From the power supply to control this production line and all cables from the control cabinet to each machine’s cabinet; Water supply: 0.5 cubic meters per hour Compressed air: 0.4-0.6 PM

Project Name	PVC edge banding production line solution
price	RMB 87,000.00 (company shipping price)
Payment Methods	30% deposit, 70% full payment before delivery.
Delivery	25 working days
Package	PE wrapping film or naked packaging
Shelf life	12 months
Quote validity period	30 days
Equipment quotation time: 20 23 - 3 - 12

Device Model	Applicable product raw materials	Yield
S J65-28/1	PVC granules	Output : 30-80KG/H ( Reasonable fluctuation according to different materials and operating conditions )
Product size	Made according to customer drawings or samples

Serial number	name	quantity	price
1	Stainless steel spiral feeder	1 set	0. 30,000 yuan
2	S J65 Edge Banding Extrusion Line	1 set	84,000 yuan
3	Operating Instructions	1 serving
4	Electrical Schematic	1 serving
5	Plastic machine accessories	1 serving

Product Name: PVC edge banding production line
Item	project	Required specifications
	Production specification range	Suitable for PVC edge banding or PVC corner line and other profile products
	Maximum production capacity Kg/h	3 0- 8 0
	Maximum extrusion speed m/min	0.5-15
	Production line center height (mm)	1000
	Production line length mm	Approximately 13,000

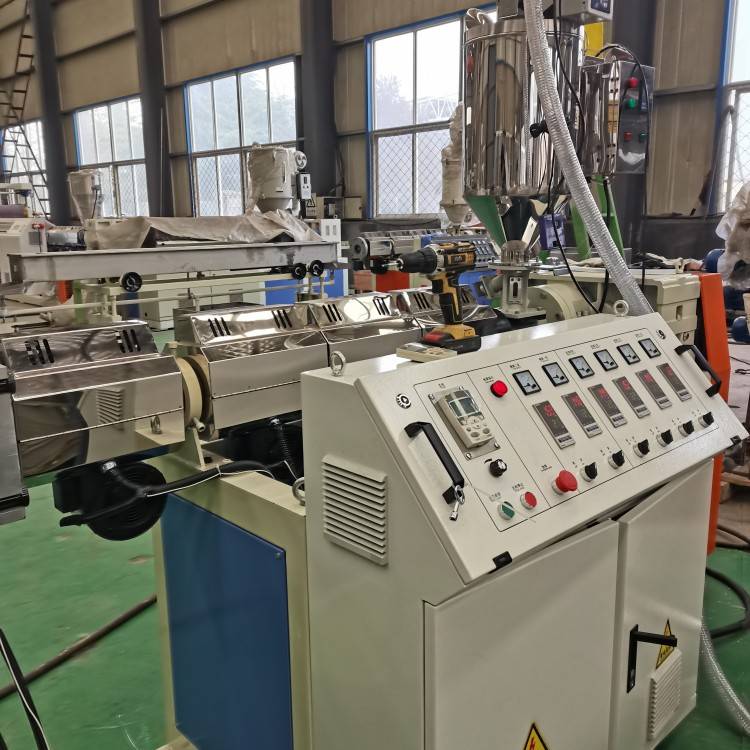

	PVC edge banding production line. S J65-28/1 extruder
1	Specifications	S J65-28/1
2	Screw diameter	65 mm
3	Screw aspect ratio	28 :1
4	Screw structure	PVC special screw
5	Barrel structure	Barrel integrated
6	Screw, barrel material	38CrMOALA
7	Screw and barrel nitriding treatment	Nitriding treatment
8	Screw and barrel service life	About 3 years
9	Main drive variable frequency motor power	18.5 KW
10	Gearbox	Changzhou plastic machinery special reducer
11	Barrel heating power	16KW
12	Barrel cooling method	Air Cooling
13	Cooling fan power	4 × 0.18 KW = 0.72 KW
14	Loading method	Stainless steel spiral feeder
15	Main drive variable frequency motor speed control system	18.5 KW frequency conversion controller
16	Host electrical appliances	Chint low-voltage electrical appliances, digital intelligent temperature controller, famous brand inverter, ergonomically structured electric control cabinet.
17	Host external power supply	Three-phase five-wire system Total installed capacity 50KW\|+40KW

Product Name: PVC edge banding production line. Mould
Item	project	Required specifications
	Mould
1	Structural form	Building block stacking machine head
2	Die head and core material	45# quenching and tempering
3	Produce products of different specifications and models	Replacement of extrusion dies of different specifications and sizes and matching shaping devices
4	Mold heating method	Use heating plate or cast aluminum heater without discoloration
5	Mould service life	About 3 years

Product Name: PVC edge banding production line . Cooling platform
Item	project	Required specifications
1	Sizing tank length	2.5M
2	Water tray material	Stainless steel
3	Longitudinal movement motor power	0.75kw
4	Structural type	Water spray cooling, water pump power 1.5KW
5	Stereotype	Water-cooled shaping mold
6	Drain box, pipe material	Stainless steel
7	Front and rear movement range	800 mm
8	Left and right adjustment range	50 mm
9	Up and down moving range	80 mm

Product Name: PVC edge banding production line. Traction + Embossing Machine
Item	project	Required specifications
1	Traction method	Roller
2	Effective traction width	200
3	Traction motor	1.1KW
4	Diameter of traction roller	150 mm
5	Speed control	Frequency Control
6	Embossing device	Replace different embossing rollers to emboss different product patterns
7	Clamping method	Pneumatic + Manual
Product Name: PVC edge banding production line. Winding machine
Item	project	Required specifications
1	Rolling method	Torque motor, double-position disc type
2	Rewinding length	200-500 meters
3	Winding motor	5N
4	Reel diameter	600 mm
5	Discharging method	Manual unloading

1 Specification model SJ65-28/1

2 screw diameter 65mm

3 Screw length-to-diameter ratio 28:1

4 Screw structure type PVC special screw

5 Barrel structure Barrel integrated

6 screw, barrel material 38CrMOALA

7 Screw and barrel nitriding treatment Nitriding treatment

8 screw and barrel service life is about 3 years

9 Main drive variable frequency motor power 18.5KW

Item times	project	Requirements specification
1	Length of diameter sink	2.4M
2	Water plate material	stainless steel
3	Longitudinal mobile motor power	0.55kw
4	Structural type	Spray water for cooling, the pump power is 0.75KW
5	Finalize the way	Water-cooled molding mold
6	Reservoir box body, pipeline material	stainless steel
7	Front and rear moving range	800 mm
8	Adjust the range left and right	50 mm
9	Up and down range	80 mm
