PP Heat Insulation Equipment

Single screw extruder1setmold1setcooling setting sink1setbelt tractor1setcutting machine1setcaseProduct displaySJ 65 Single Screw Extruder1specifications and modelsSJ-652Screw diameter65mm3Long diameter ratio of screw28:14Screw structure formPVC Special screw rod5Machine cylinder structureOne machin......

Send Inquiry

Product Description

Single screw extruder	1set
mold	1set
cooling setting sink	1set
belt tractor	1set
cutting machine	1set

case

Product display

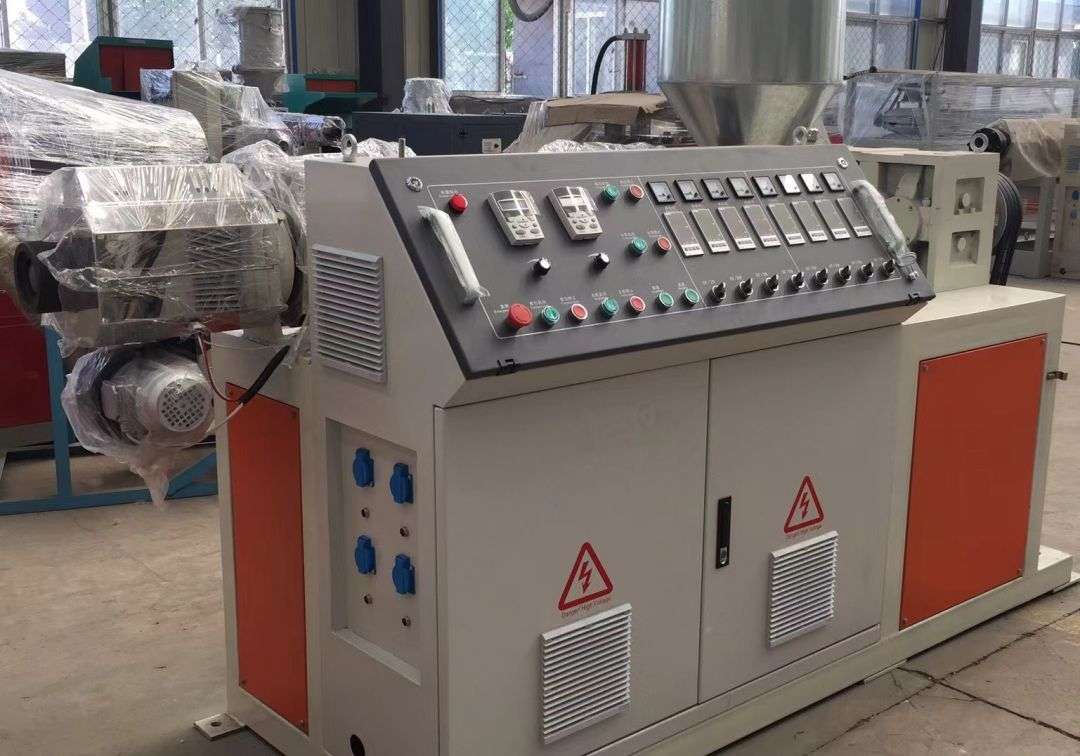

SJ 65 Single Screw Extruder

1	specifications and models	SJ-65
2	Screw diameter	65mm
3	Long diameter ratio of screw	28:1
4	Screw structure form	PVC Special screw rod
5	Machine cylinder structure	One machine tube
6	Screw rod, machine barrel material	38CrMOALA
7	Screw, barrel nitride treatment	nitrogen treatment
8	Screw rod, barrel service life	About 1-2 years
9	Power of the main drive frequency conversion motor	15KW Siemens Bead Motor
10	reduction box	Jiangyin or Changzhou produced plastic machinery special speed reducer
11	Bottle heating power	12KW
12	The cooling mode of the cylinder	forced air cooling
13	Cooling fan power	4×0.18KW=0.72KW
14	Feed method	Self-weight feeding
15	Speed control system of main drive variable frequency control motor	15KW frequency conversion controller (ABB frequency converter)
16	Host electrical appliances	Siemens low-voltage electrical appliances, Omron digital explicit intelligent temperature controller, ABB frequency converter, human working station structure electric control cabinet.
17	Host external power supply	Three-phase five-line system Total installed capacity of 34KW \| + 4KW
18	Host loading system	Stainless steel hopper

mould

Item times	project	Requirements specification
	mould	6-18mm, prepared according to the samples or drawings
1	structural style	Building block superposition machine head
2	Mold-head and die-core material	45 # quality treatment
3	Production of different specifications and models of products	Replace extrusion molds of different sizes and supporting setting devices
4	Heating mode of mold	Use heating non-changing heating sheet heater
5	Mold service life	About 3-5 years

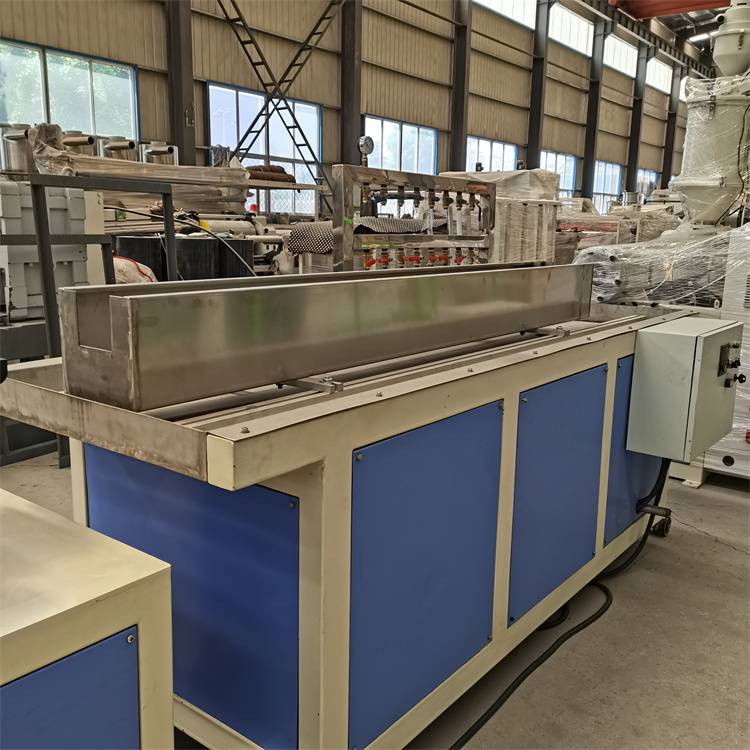

Stainless Steel Cooling Setting Sink

Item times	project	Requirements specification
1	Length of diameter sink	2.4M
2	Water plate material	stainless steel
3	Longitudinal mobile motor power	0.55kw
4	Structural type	Spray water for cooling, the pump power is 0.75KW
5	Finalize the way	Water-cooled molding mold
6	Reservoir box body, pipeline material	stainless steel
7	Front and rear moving range	800 mm
8	Adjust the range left and right	50 mm
9	Up and down range	80 mm

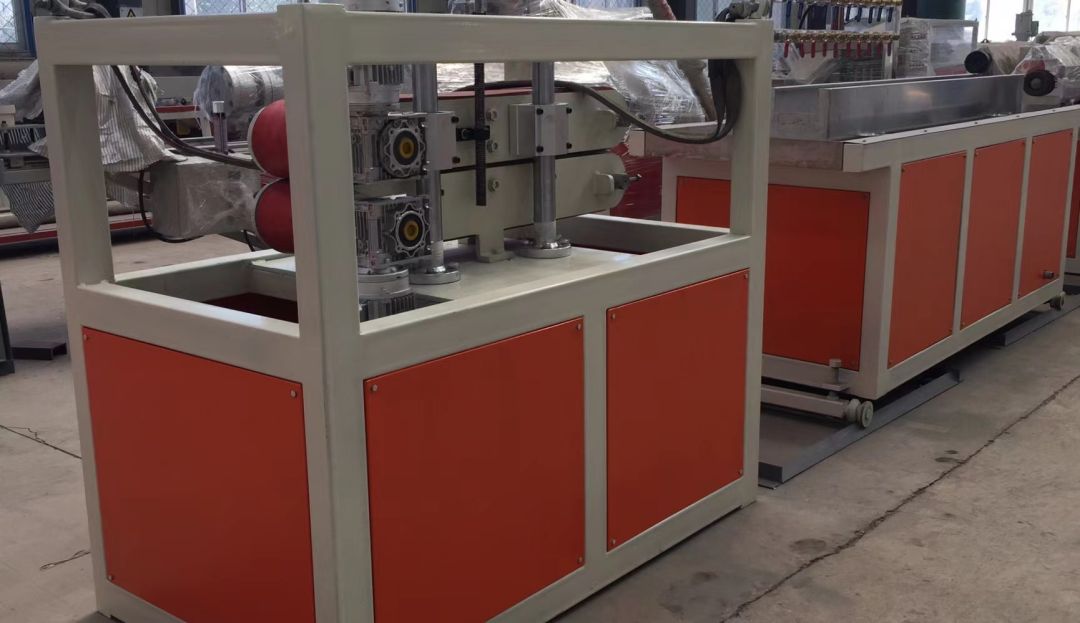

Belt tractor

Item times	project	Requirements specification
1	mode of traction	To roll type
2	Pull effective width	120
3	pulling motor	0.75KW
4	hauling speed	And 1-12 m / min
5	Speed control	Frequency conversion control
6	Tape material	Wear-resistant silicone
7	The clamping way	hand movement
