PVC Plastic Floor Production Line

PVC Plastic Floor Production Line is a floor made of wood-plastic composite material. It has the same processing characteristics as wood. It can be sawed, drilled, and nailed using ordinary tools. It is very convenient and can be used like ordinary wood. At the same time, it has the wooden feel of wood and the water-resistant and anti-corrosion properties of plastic, making it an excellent and durable outdoor waterproof and anti-corrosion building material. PVC Plastic Floor Production Line machine consists of a mixing unit, a twin-screw extruder, a vacuum shaping table, a tractor, a cutting machine, and a discharge rack, which form the main part of the entire production line.

Send Inquiry

Product Description

PVC Plastic Floor Production Line machine consists of a mixing unit, a twin-screw extruder, a vacuum shaping table, a tractor, a cutting machine, and a discharge rack, which form the main part of the entire production line.

PVC wood plastic floor extrusion production line - The wood plastic floor extrusion production line uses SJZ65/132 conical twin-screw extruder, which is specially used for the extrusion, plasticization and molding of PE powder + wood powder raw materials. It has the characteristics of high output, good plasticizing effect and low energy consumption.

The setting cooling of thePVC Plastic Floor Production Lineadopts a vacuum setting and circulating water cooling system. The vacuum pipes and cooling water pipes are connected using copper unions. While ensuring the vacuum degree, it can also ensure the cooling effect.

The traction of thePVC Plastic Floor Production Line machine adopts an upper and lower flat block traction crawler mechanism, and special traction rubber blocks can be added to meet the purpose of traction of special profiles, without squeezing plate profiles and deforming the product. The lifting and lowering of the crawler track is controlled by a cylinder with adjustable pressure function to control the contact area and pressure of the crawler track on plates and profiles.

The cutting machine of the PVC Plastic Floor Production Lineadopts a lifting knife cutting machine, which is controlled synchronously with the host extrusion to ensure accurate cutting.

Video

case

product display

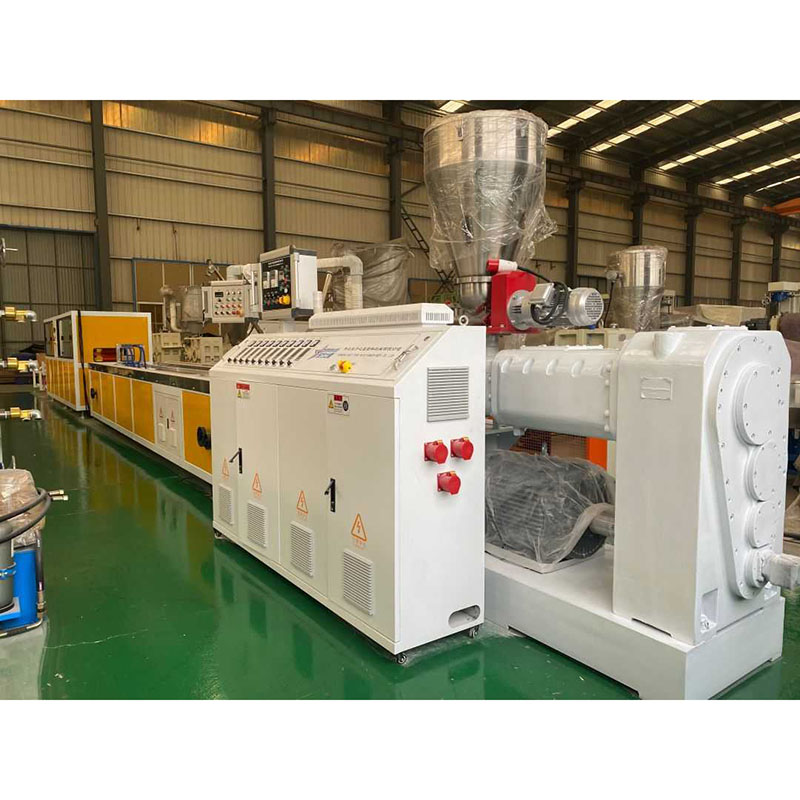

Conical Double Screw Extruder

2. SZ-65 / 132 conical double-screw extruder
Machine cylinder hardness:	HV＞940
Material of screw and screw:	38CrMoAIA
Nitride layer depth of screw barrel:	0.4-0.7mm Injection alloy treatment at front of screw barrel.
Power of main motor:	37kw (Shandong Hengli or Qingdao Motor)
Main motor speed mode:	ABB frequency conversion is adopted
Heating method:	Casting aluminum heating ring
heating power:	24KW
cooling-down method:	centrifugal blower
Power of the cooling fan:	3 sets 0.25kw

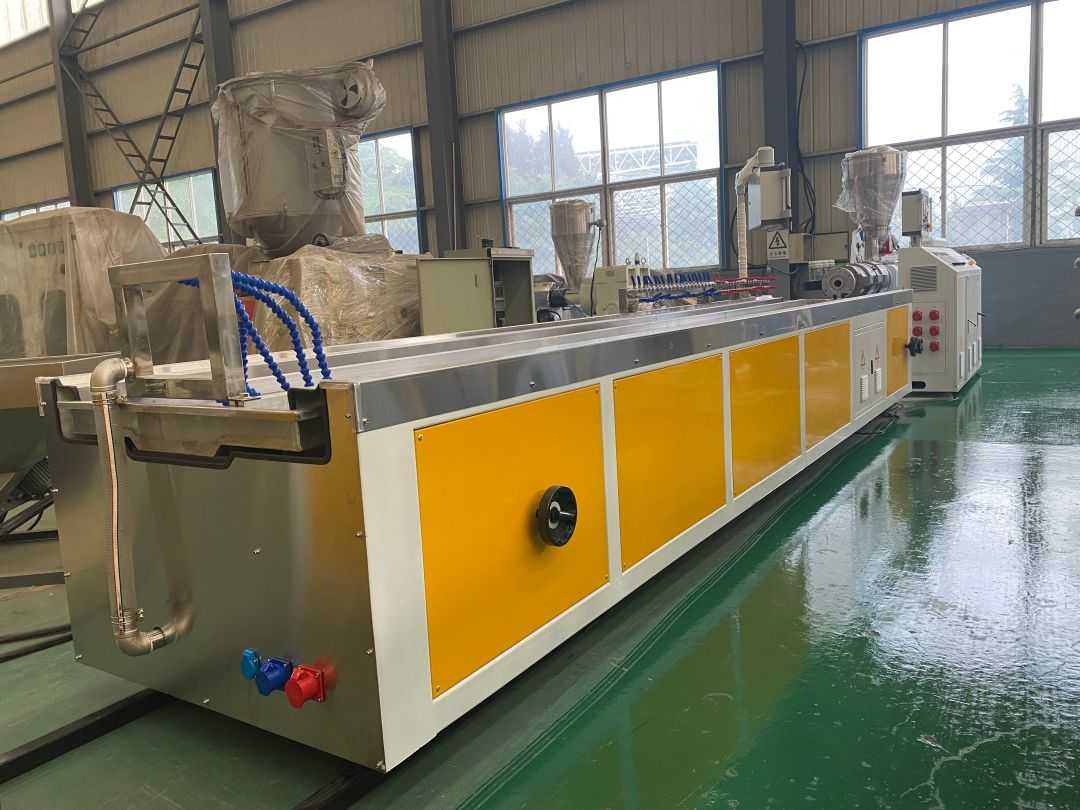

Vacuum Setting Platform

3. DX-6000 vacuum setting platform
Platform length:	6000mm
Platform material:	201 Stainless steel
vacuum pump:	5.5KW: 2 sets
water pump:	2.2KW: 1 set
Vortex fan:	1.1W 1 set
Use of the vortex fan:	Water stains on the surface of the blow-dried products
Mold mounting guide rail:	High-quality aluminum alloy with T-type groove profile
Settlements adjustment:	The upper and lower adjustment is the worm wheel box and wire rod adjustment The left and right adjustment is the silk rod adjustment The water support balance of the setting platform is the worm wheel box and wire rod adjustment
Electric mobile device length:	800mm
Set table moves back and forth:	The 1.1KW cycloid wheel deceleration motor is used for adjustment

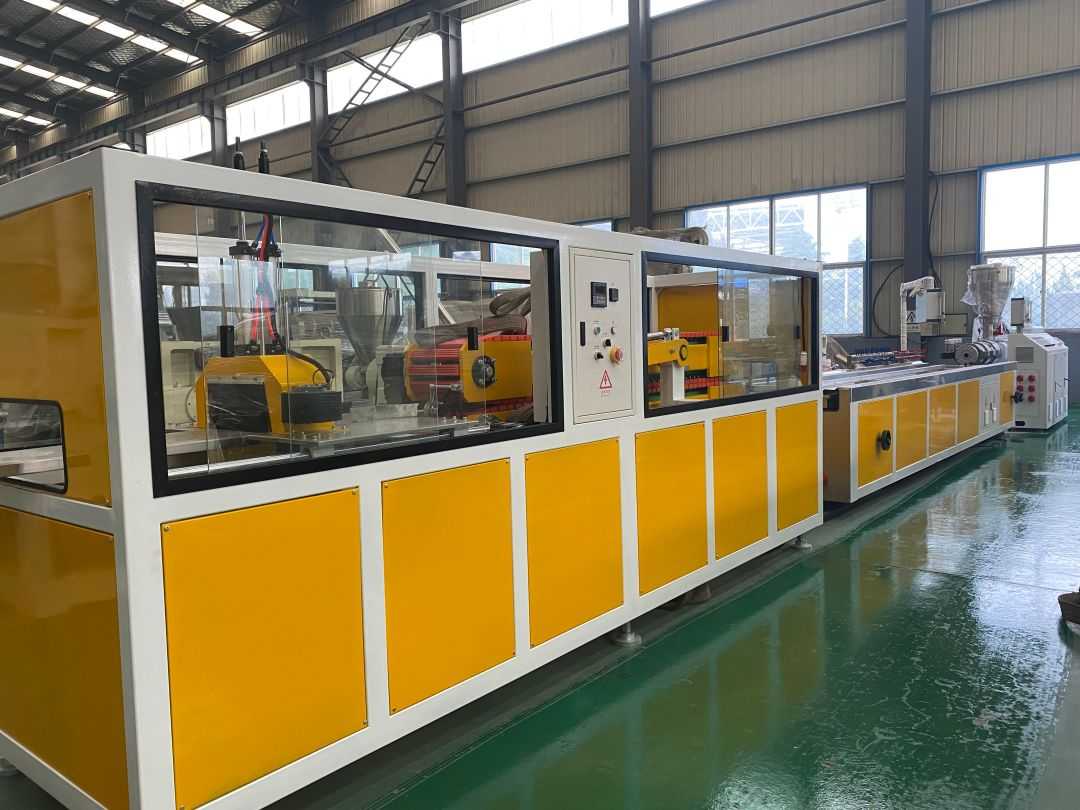

Traction And Cutting Machine

4. QY-300 traction and cutting machine
(1) Traction part:
mode of traction:	Double track traction
Rubber block material:	Silicone gel (reliable wear-resistant, trapezoidal section, with groove of contact face)
Gel block width:	300 mm 1 row
Binding form:	Use the cylinder turn arm type
Pneumatic element working pressure:	0.5~0.7 Mpa
Effective track length:	2100mm
hauling speed:	0.5~6m/min
power of motor:	1.5KW * 2 sets
Motor speed regulation mode:	ABB frequency conversion is adopted
(2) Cutting part:
Binding form:	Adopt pneumatic
length of cut:	10-300mm
Cutting method:	Cut with high quality alloy saw blades
Cutting motor power:	2.2KW
Cutting mode:	Automatic cut and manual cut
Fixed-length cutting method:	The approach switch is adopted
working pressure:	0.5~0.7 Mpa
