PP/PC Lamp Shade Extrusion Production Line

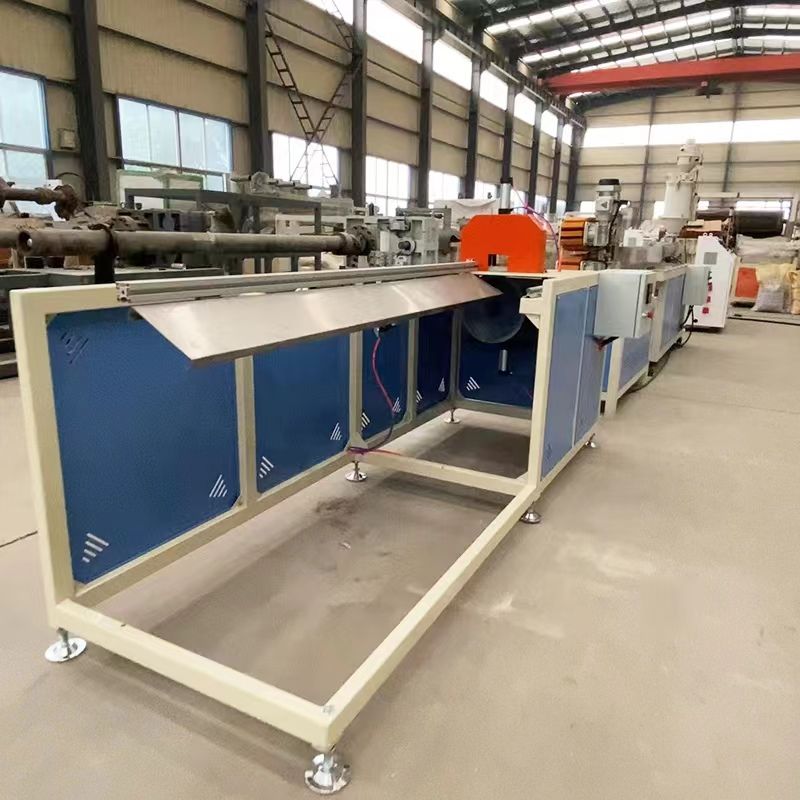

The PP/PC lamp shade extrusion production line is mainly composed of an extrusion host, a shaping table, a belt traction machine, and a cutting rack. The extrusion host adopts a single-screw extruder with variable frequency speed regulation. It can be configured according to various specifications of products. Different types of main machines; the shaping table adopts a stainless steel water tray and is equipped with a domestic famous brand vacuum pump; the tractor adopts belt traction; the cutting and unloading adopts imported saw blades for positioning and accurate cutting.

Send Inquiry

Product Description

Features of PP/PC Lamp Shade Extrusion Production Line:

1. This unit has strong versatility and is suitable for the extrusion of rigid pipes and special profiles; the specific configuration varies according to different products.Product design plan!

2. Applicable raw materials: PC, PMMA, ABS, rigid PVC, PP, PE and other granular materials

3. Applicable pipe diameter range: round pipes, semicircles, and special-shaped products within OD120mm.

4. Suitable for single color and double color through co-extrusion extruder and mold.

5. Different products can choose water-cooling, cold-top, air-cooling and other processes.

Case

Product Display

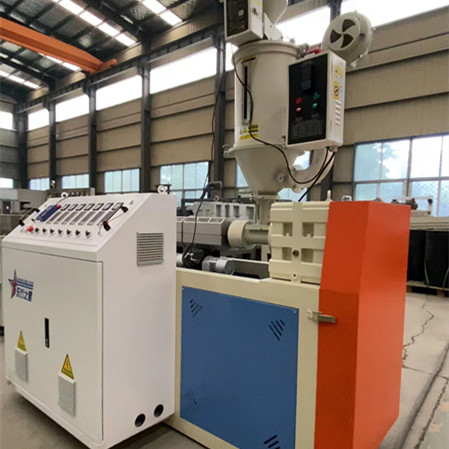

SJ 55 Single screw extruder

1	specifications and models	SJ-55
2	Screw diameter	55mm
3	Long diameter ratio of screw	28:1
4	Screw structure form	pc Special screw rod
5	Machine cylinder structure	One machine tube
6	Screw rod, machine barrel material	38CrMOALA
7	Screw, barrel nitride treatment	nitrogen treatment
8	Screw rod, barrel service life	About 1-2 years
9	Power of the main drive frequency conversion motor	15KW Siemens Bead Motor
10	reduction box	Jiangyin or Changzhou produced plastic machinery special speed reducer
11	Bottle heating power	12KW
12	The cooling mode of the cylinder	forced air cooling

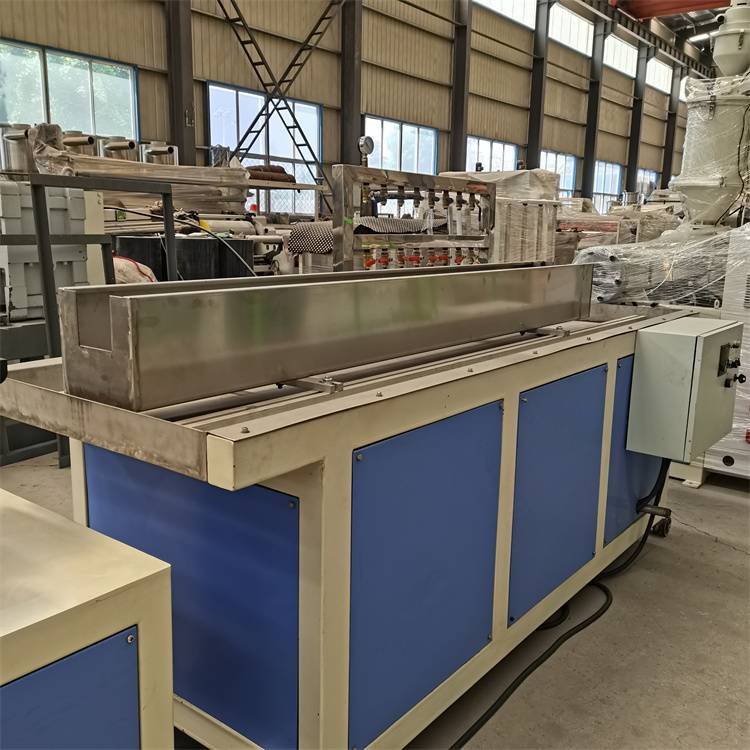

Cooling Setting Sink

Item times	project	Requirements specification
1	Length of diameter sink	2.4M
2	Water plate material	stainless steel
3	Longitudinal mobile motor power	0.55kw
4	Structural type	Spray water for cooling, the pump power is 0.75KW
5	Finalize the way	Water-cooled molding mold
6	Reservoir box body, pipeline material	stainless steel
7	Front and rear moving range	800 mm
8	Adjust the range left and right	50 mm
9	Up and down range	80 mm

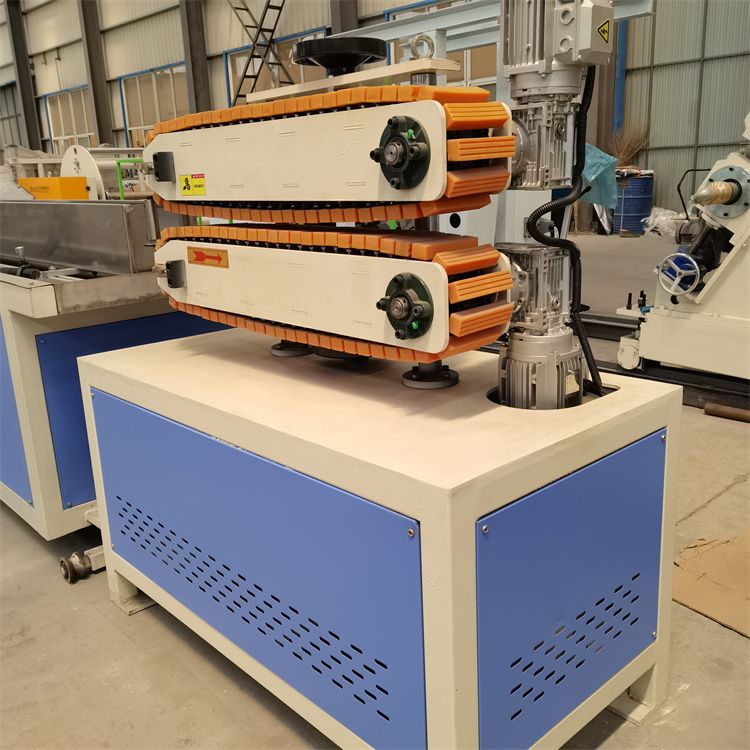

Belt Tractor

Item times	project	Requirements specification
1	mode of traction	To roll type
2	Pull effective width	120
3	pulling motor	0.75KW
4	hauling speed	And 1-12 m / min
5	Speed control	Frequency conversion control
6	Tape material	Wear-resistant silicone
7	The clamping way	hand movement
